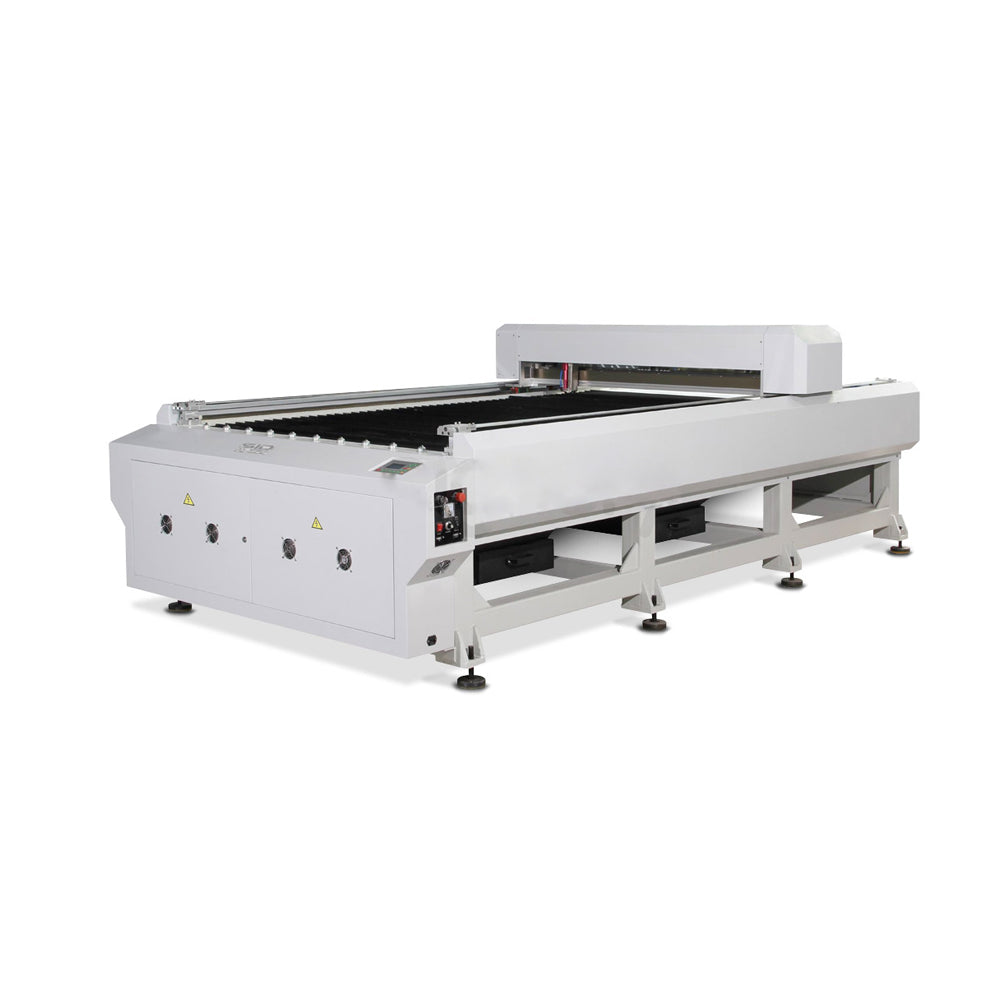

96” x 52” XL2513 Laser Cutter, with 150W Laser Tube
Original price
$26,599.00
-
Original price
$26,599.00
Original price
$26,599.00
$26,599.00
-
$26,599.00
Current price
$26,599.00
Application:
The XL 1390 Laser Cutter / Laser Engraver is ideal for sign makers, to produce engraved and POP displays, award plaques, architectural signage and promotional items can help expand your business.
Additional applications encompass fabric cutting, shoemaking, furniture, packaging, molding and monument engraving. By producing acrylic, MDF, plywood, rubber and even cardboard jobs, the XL Laser Engraver will attract new customers and bolster your bottom line!
| Specification | |
| Model | LCM-XL-2513-150W |
| Laser Tube Power | CO2 Glass Laser Tube 150 W |
| Cutting Area | 96″ x 52″ (2,440 x 1,330 mm) |
| Engraving Speed | Up to 16″/s (400 mm/s) |
| Reposition Accuracy | +/- 0.01mm |
| Min. Engraving Size Letter | 0.04″ (1mm) |
| Max. Cutting Speed | Up to 12″/s (300mm/s) |
| Max. Cutting Thickness | Acrylic – 1” (25 mm), MDF – ½ “ (12 mm), PS – 3/16” (5 mm) |
| Max Power Consumption | 1800W |
| Voltage | AC 220V 60hz |
| Maximum Laser Head Height Adjustment | Up to 1.77” (45 mm) |
| Cooling System | Water cooling system |
| MOTOR TYPE | Step motor featuring high speed, high precision and great stability for X and Y axis movement |
| Speed Control | Adjustable from 0 - 100% |
| Supported Formats | Plt,. Dxf, .Ai (version 8), AutoCad, CorelDraw |
| Operational Temperature | Temperature 20ºC - 28ºC (68ºF - 82ºF) |
| Humidity 40% - 60% | |
| Equipment Dimensions | 78” x 140” x 47” (1,920 x 3,550 x 1,200 mm) |
| Package Dimensions | 80” x 144” x 58” (2,030 x 3,650 x 1,450 mm) |
| Equipment Weight | Net: 2,645 lb (1,200 kg) • Gross: 2,866 lb (1,300 kg) |
