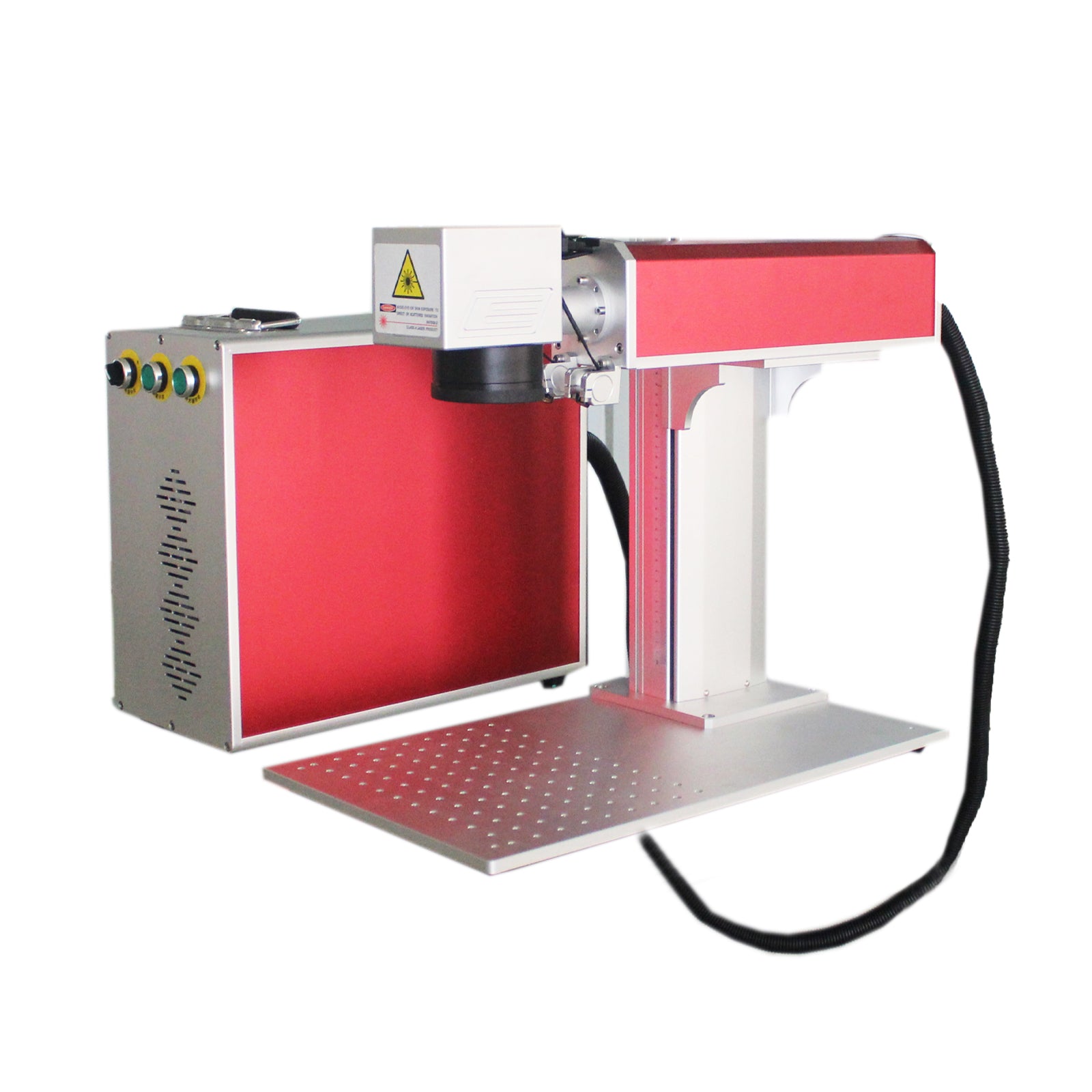

60W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn
Original price
$6,899.00
-
Original price
$6,899.00
Original price
$6,899.00
$6,899.00
-
$6,899.00
Current price
$6,899.00
Feature:
1. Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
2. Life of the laser can be up to 100000 hours.
3. Compact, lightweight, simple interface, flexible and adjustable processing direction.
4. High precision scale
5. Runs without consumable spare parts, no need maintenance, great for continuous working.
6. Computer System Requirements: Windows XP, Vista, 7, 8, or 10
7. Easy operation software, compatible with LightBurn, PHOTOSHOP, CORELDRAW, AUTOCAD
8.Rotary axis is included, you can mark on regular cylinder or inside / outside ring.
Specifications
| Model | LMM-DR-60W-M |
| Fiber Laser Source | JPT M7 |
| Output Power | 60W |
| Laser power supply | 0.5KW, 110V / 60HZ |
| Work Area | 200mm x 200mm(7.9" x 7.9") |
| Laser Wavelength | 1064 nm |
| Min. Beam Quality (Max. M²) | 1.4 |
| Max. Pulse Energy | 1.5 mJ |
| Max. Marking Speed | 275.6 ips (7000 mm/s) |
| Laser Frequency | 1–4000 kHz |
| Pulse Duration | 2–500 ns |
| Beam Diameter | 7±0.5 mm |
| Software | EzCad2 |
| Compatible Operating Systems | Windows XP, Vista, 7, 8, or 10 |
| Rotary Axis | Yes |
