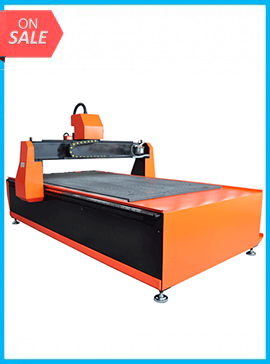

3KW Water Cooling Industry CNC Woodworking Router Vacuum Platform & DSP M-1325

$5,999.99
$6,799.99
$5,999.99
Shipping calculated at checkout.
    3KW Water Cooling Industry CNC Woodworking Router Vacuum Platform & DSP M-1325 www.wideimagesolutions.com 5999.99

    Tech Specs

    Business Financing Available

    • X, Y Work Area: 1300 x 2500(mm)
    • Gantry Height: 200mm
    • X, Y ,Z Guide: Rack and Pinion ,Gear driver, Square linear guide way
    • Drive type: Micro-Step Stepper Motor
    • Spindle: 3.0KW high speed (water cooling)
    • Max Moving Speed: 35000 mm/min
    • Max Cutting Speed: 25000 mm/min
    • Resolution: 0.025mm
    • Command code: HPGL, G-code
    • Spindle tools: ф3.175, ф6, ф12.7
    • Power: AC220V±10% / 50~60Hz
    • Machine dimension: 3200*2000*1600（mm）
    • Packing dimension:3240*2040*1760(mm)
    • Warranty: 12 Months (6 months for Spindle)

    Applications

    Wood, MDF, Acrylic, Plastic, PVC and so on.

    Woodworking industry, 3D wave board processing, Windows, Crafts wooden doors, Milling and engraving on the furniture

    Standard

    (01) User Manual (CD in English Version)

    (02) DSP Handle

    (03) Communication cable

    (04) Water pump for Spindle, Water tank, Water pipe head

    (05) Power cable: 3 pieces

    (06) Tool case : 1 set

    (07) Wrench: 1 set

    (08) Bit(18 pieces):10 pieces Flat bottom bits(5 pieces:Ф3.175X30X0.1 , 5 pieces: Ф3.175X30X0.2),4 pieces straight knife(2 pieces:Ф3.175x22,

    2 pieces: Ф6X32)2 pieces “V” type slotting bit, 2 pieces cleaning bottom bits)

    (09) Collet: 2 pieces (ф6 to ф3.175, ф12.7 to ф6)

    (10) Other tools



      Optional

    • High power Spindle optional
    • Air Cooling optional
    • Dust Collector optional
    • Water Tank optional
    • Rotary option

       Features

    • Adopt Rack and Pinion, imported linear square guide rail, high precision and long life.
    • Y-axis adopts double motors, double rack, high speed, big force.
    • High speed stepper motor (Servo motor optional).
    • Strong software compatibility, is compatible with Type3/Artcam/Mastercam/CAM design software and etc.
