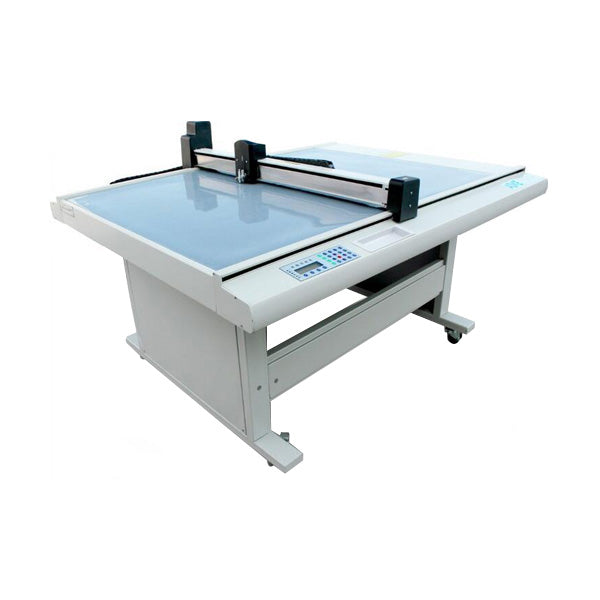

35.4" x 23.6" (900 x 600mm) Aoke GD series Shoe Pattern Cutting Plotter

$5,008.00
$5,008.00
Shipping calculated at checkout.
    35.4" x 23.6" (900 x 600mm) Aoke GD series Shoe Pattern Cutting Plotter

    Tech Specs

    Description

    CS-AOKE-GD0906 seriees high speed cutting machine could meet the requirement for high-level cutting accuracy.It employs
    import steel belt for power driving, and work under high precision, high speed, stable capability, convenient to use, compatible with any CAD software. It is greatly welcomed by customers and widely applied for high accuracy cutting or plotting for shoes. It equips pen and special knife to cut and draw many kid of materials such as card paper, craft paper used in the shoe pattern industry. Accroding to the special need, we offer CS-AOKE-GD0906 for customers. CS-AOKE-GD0906 shoes pattern cutting plotter apply vacuum to hold cutting sheet.
    It is equipped spring plotting pen, special cutting kife.
    Knife tool
    No. Photo Name Application
    1 Special knife

    Used to cut materials within 2mm thick
    Cutting materials: paperboard, Kraft paper, gray board, offset board and self-adhesive paper, etc.

    Pen
    No. Photo Name Application
    1 Pen

    Drawing



    Specifications

    Model CS-AOKE-GD0906

    Effective cutting area

    900 x 600mm

    Way of fixing paper way

    Vacuum absorbing

    Driving material

    Import steel belt

    Cut materials

    Red hard paper, plastic board, white board, kraft paper

    Configuration

    Special knife， pen
    Cutting thickness 0.5-2mm
    Cutting precision ≤0.05mm

    Cutting way

    Drawing by pen, half cutting, whole cutting

    Max speed

    		 1000mm/s

    Working time and character

    		 Continuous work, operating computer and cutting at the same time, linear high-speed
    Transmitting port International standards: parallel port/RSC232 serial port
    Capacity of buffer area Buffer area of large capacity, it can finish high-speed transmission for data at a time

    Instruction set

    International standards: HP-GL or DXF form can be selected selected, It is compatible with all kinds of CAD software
    Occupy dimension

    1335 x 1065 x 1080mm
