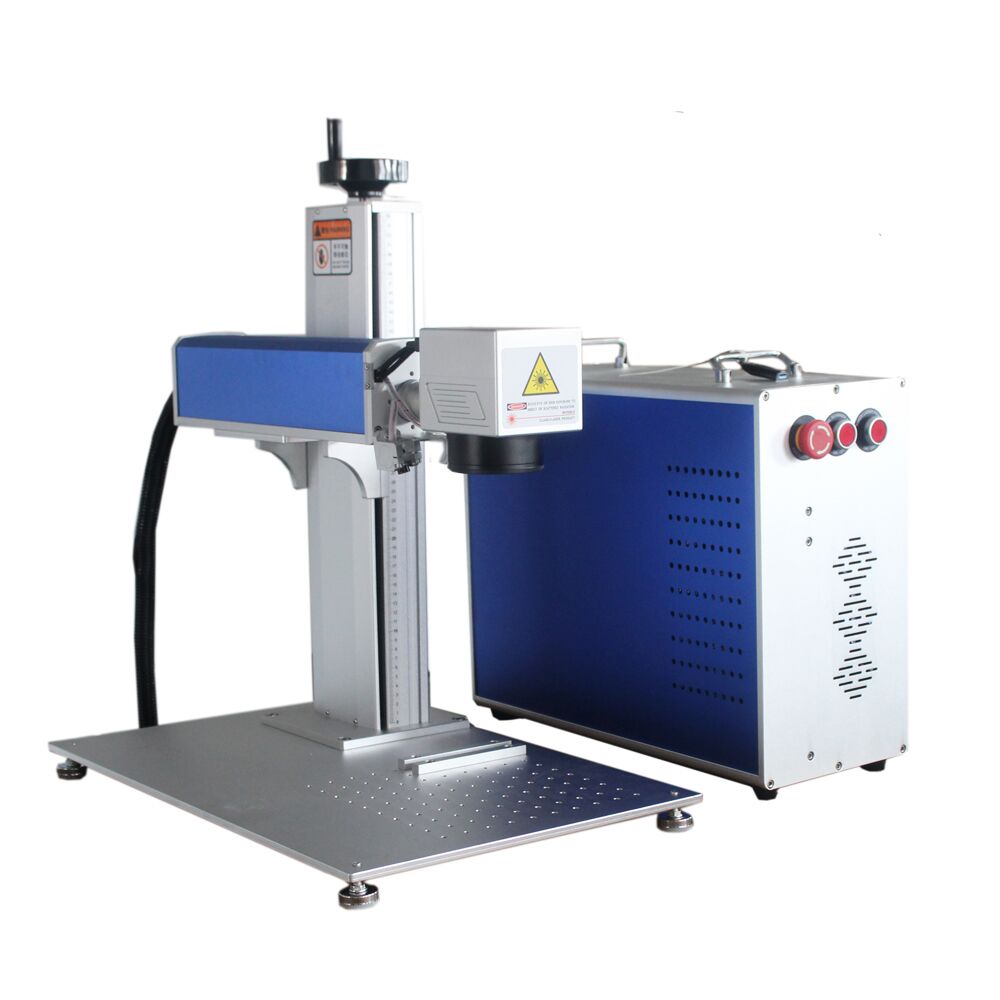

• 20W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn
1 1

Wide Image Solutions

20W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn

$4,099.00
$4,099.00
Shipping calculated at checkout.
    20W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn

    Tech Specs

    Specifications

    Model  LMM-DR-20W-M
    Fiber Laser Source  JPT M7
    Output Power  20W
    Laser power supply  0.5KW, 110V / 60HZ
    Work Area  150mm x 150mm(5.9" x 5.9")
    Laser Wavelength  1064 nm
    Min. Beam Quality (Max. M²)  1.4
    Max. Pulse Energy  0.8 mJ
    Max. Marking Speed  275.6 ips (7000 mm/s)
    Laser Frequency  1–4000 kHz
    Pulse Duration  2–350 ns
    Beam Diameter  7±0.5 mm
    Software  EzCad2
    Compatible Operating Systems  Windows XP, Vista, 7, 8, or 10
    Rotary Axis  Yes
