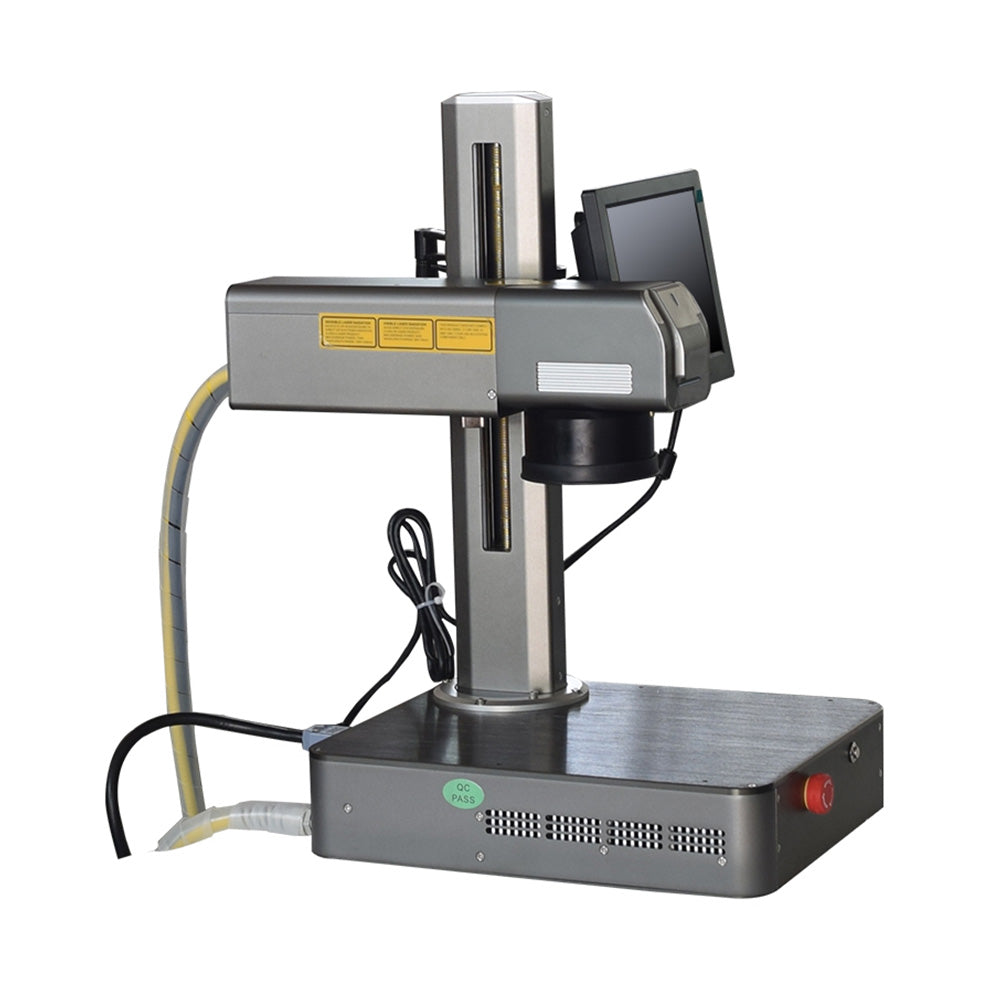

20W Integrated Laser Marking Machine, Including Computer

Regular price
$4,899.00
Regular price
Sale price
$4,899.00
Shipping calculated at checkout.
    20W Integrated Laser Marking Machine, Including Computer
    20W Integrated Laser Marking Machine, Including Computer
    20W Integrated Laser Marking Machine, Including Computer
    20W Integrated Laser Marking Machine, Including Computer
    20W Integrated Laser Marking Machine, Including Computer
    20W Integrated Laser Marking Machine, Including Computer
    20W Integrated Laser Marking Machine, Including Computer

    Tech Specs

    Features:
    1. Highly integrated and lightweight.
    2. Fast and accurate marking, cost-effective.

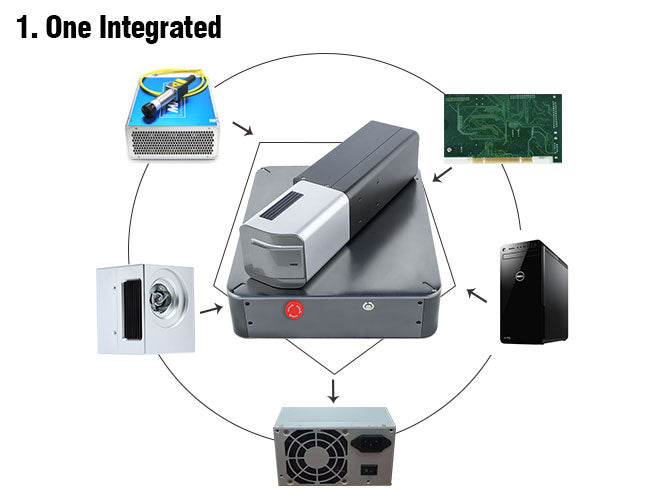

    3. M5-box laser integrates 5 core components such as fiber laser, 8mm high-speed Galva- no meter, power supply, Intel
    industrial computer, and genuine marking system.
    4. Achieve multi-card integration, multi-source power supply integrated into a single source power supply.
    5. It has great advantages in lightness, flexibility and speed. It is a small-volume, lightweight. High-speed, high-flexibility, cost-effective fiber laser.

    Application Industry:
    Jewelry, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

    Specification
    Power Consumption 20W
    Wave Length 1064nm
    Beam Quality M2 < 1.4

    Modulation Frequency 30-60KHZ
    Carving Line Speed 0-8000mm/s
    Marking Range 100/200mm(optional)
    Focus Mode By hand
    Marking Speed 600-1000character/minute

    Minimum width

    0.02 mm
    Minimum character 0.15 mm
    Repeatability precision ±0.002 mm

    Operating Temperature:

    10-35 °C
    Power Consumption ≤ 160 W
    Cooling Mode Air Cooling

    Operating Environment:

    Clean and dust free
    Power Supply AC110V±10% 60Hz or AC220V±10% 50Hz
    Board Beijing JCZ
    CPU Intel J1900 Processors
    Chipset Intel Bay Trail
    RAM ADATA 4G DDR3L 1600
    BIOS AMI EFI BIOS

    Hardware

    32G
    USB port 4x USB2.0
    Serial port 1x RS232 (pin) and COM1

    Operating system

    Win7, Win8, Win10, Linux
