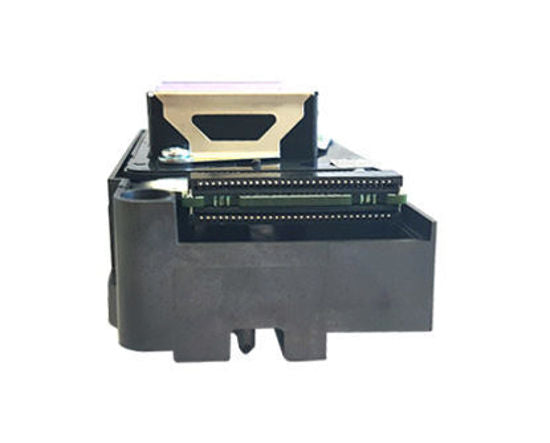

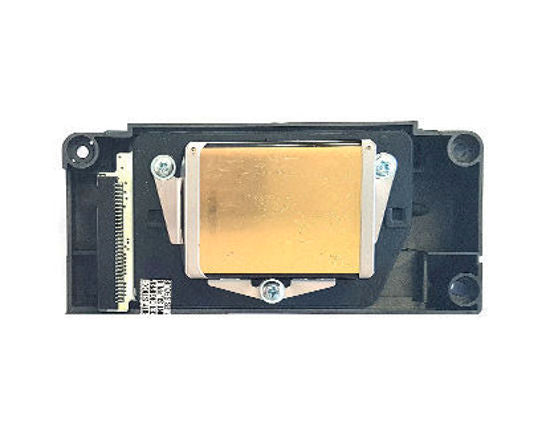

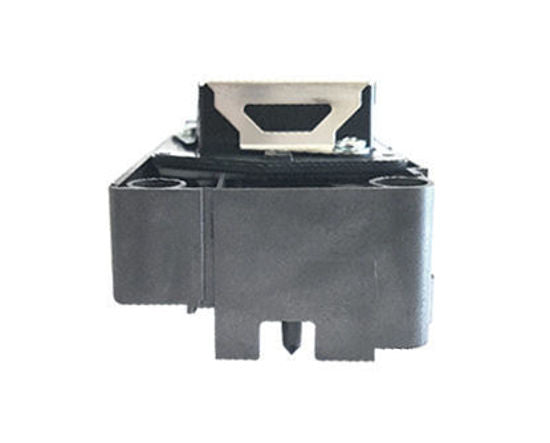

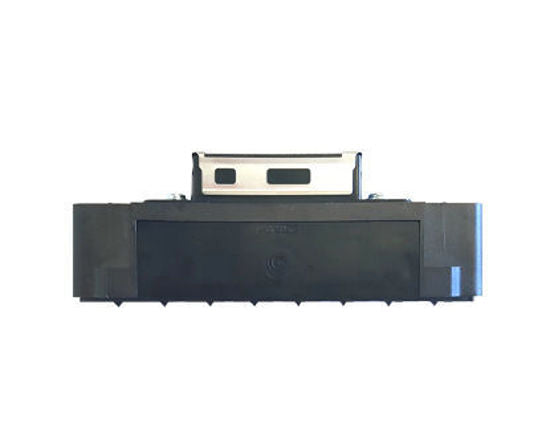

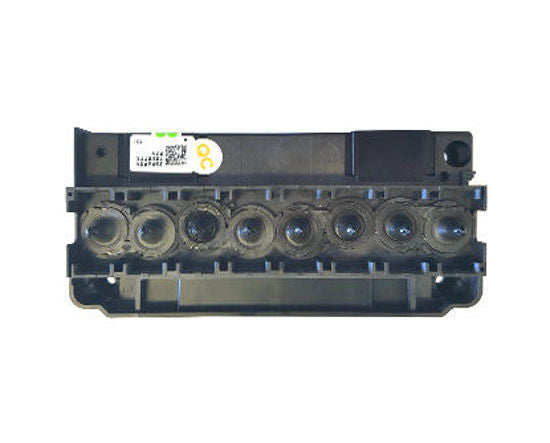

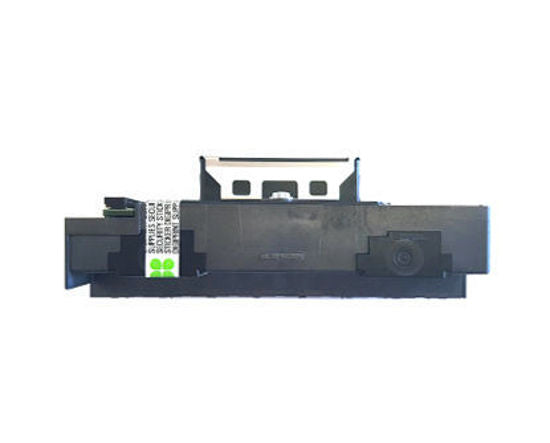

Epson DX5 Solvent Printhead (2nd Coded) - 186010-2

This printhead is a second coded DX5 head model. This printhead Epson part number is F186010. Please make sure you select the right printhead for your printer as they are not compatible. The first four digitals on the head circuit board is greater than 1444. It is important to check if the old printhead is 2nd coded before any new head installation and the head ID alone cannot determine the head type.

Product Specifications

• Technology: Micro-Piezo
• Native resolution: 1440 dpi
• Min. droplet size: 1.5 pico litre
• Max. droplet size: 21 pico litre
• Tot. amount of nozzles: 1440 (8 lines x 180 nozzles)
• Firing frequency: 8 kHz
• Ink compatibility: water-based, solvent and eco-solvent based

We recommend to change the head cables when installing a new printhead.
