A missing nozzle pattern is not automatically a failed printhead. In a busy sign shop or CAD production department, replacing a head too early adds unnecessary cost, while waiting too long can waste media, disrupt color consistency, and put deadline-sensitive jobs at risk. Knowing when should printheads be replaced comes down to separating a recoverable maintenance issue from a true hardware failure.
For wide-format operators, the decision should be based on repeatable test results, print quality, printer diagnostics, and the condition of the ink delivery system - not one imperfect print. A disciplined approach protects output quality and helps keep a revenue-producing printer in service.
When Should Printheads Be Replaced?
Replace a printhead when it can no longer produce acceptable, repeatable output after the correct cleaning and recovery procedures have been completed. The key word is repeatable. A head that briefly improves after cleaning but immediately loses nozzles again may be nearing the end of its usable life, even if it has not failed completely.
The clearest replacement indicators are persistent nozzle loss, recurring banding, visible ink deflection, electrical errors, physical damage, or an inability to calibrate color and alignment to production standards. On a machine used for vehicle wraps, fine-art photography, indoor signage, or detailed engineering drawings, even a small defect can be enough to justify replacement because the cost of reprints and lost customer confidence rises quickly.
Printhead life varies widely by manufacturer, ink type, print volume, maintenance practices, and operating environment. A head in a high-volume solvent or UV production printer faces different demands than one in a water-based photographic printer or an office CAD plotter. Manufacturer life estimates can be useful for planning, but they should not override the evidence in your nozzle checks and finished prints.
Signs the Problem Is More Than a Clog
A temporary clog is common, especially after downtime, low humidity, incorrect storage conditions, or a missed maintenance cycle. It may clear with an approved cleaning routine, proper capping station contact, and a few recovery prints. A failing printhead behaves differently: the defect persists, shifts, or worsens despite those steps.
Nozzles remain missing after approved cleaning
Run a nozzle check before cleaning, then repeat the check after each manufacturer-approved cleaning cycle. If the exact same nozzles remain absent after normal cleaning, a stronger cleaning procedure, and adequate recovery time, the issue may be permanent nozzle damage rather than dried ink.
Avoid repeating aggressive cleanings without a clear reason. Excessive cleaning consumes ink, fills maintenance components faster, and can pull air into the ink system. It can also mask the real problem when the fault is a worn damper, restricted ink line, weak pump, dirty capping station, or failed printhead channel.
Banding returns immediately after calibration
Banding can come from many sources, including feed calibration, media settings, pass count, bidirectional alignment, and heater settings. But if banding stays in the same color channel or appears in the same location across multiple media profiles, inspect the nozzle pattern closely.
A head with permanent nozzle dropout cannot be corrected through alignment. Calibration may reduce the visibility of the defect, but it will not restore missing ink channels. This is especially noticeable in solid fills, gradients, skin tones, photographic images, and corporate colors that require clean, even coverage.
Ink fires in the wrong direction
Deflected nozzles create fine streaks, fuzzy edges, or overspray around text and graphics. This often appears as a shadow beside sharp lettering or a rough edge on vector-cut decals. Deflection can result from contamination on the printhead face, but if careful cleaning does not correct it, the nozzle plate may be damaged.
For shops printing close-view indoor graphics, labels, photographs, or detailed wrap panels, persistent deflection is usually a replacement-level issue. The output may still look acceptable from a distance, but it is no longer dependable for premium work.
The printer reports a printhead error
Many professional printers monitor printhead temperature, voltage, ink flow, and communication. A recurring error that identifies a specific head, color channel, or electrical connection deserves immediate attention.
First, follow the manufacturer’s procedure for reseating or inspecting the printhead and its contacts. Check for ink contamination, damaged contacts, and loose connections. If the error returns after those steps, replacement is often the practical path forward. Continuing to run a head with an electrical fault can create unpredictable output and may affect adjacent components.

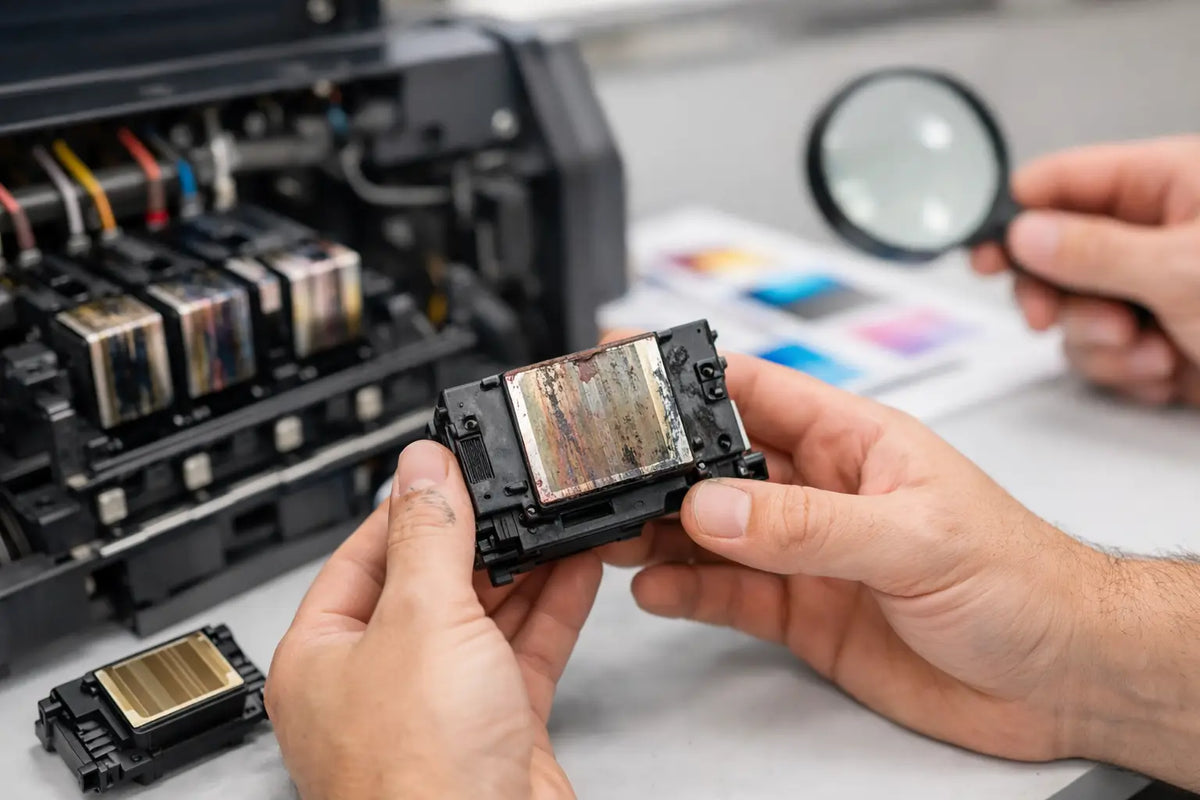

Physical damage is visible
Scratches on the nozzle plate, warped printhead surfaces, impact damage from a head strike, or heavy dried ink buildup can permanently affect firing performance. Head strikes are particularly common when warped media, improperly loaded boards, curled vinyl, or thick materials contact the carriage path.
If a printhead has been physically damaged, do not rely on repeated cleanings to restore it. Address the cause of the strike before installing a replacement head. Check platen condition, media handling, vacuum performance, carriage height, pinch rollers, and material settings so the new component is not exposed to the same failure.
Rule Out the Supporting Components First
A printhead is only one part of the ink delivery and maintenance system. Replacing it without diagnosing the surrounding components can lead to the same print defect - and a second unnecessary replacement.
Start with the ink. Confirm that the correct ink is installed, cartridges or bulk tanks have adequate supply, and the ink is within its recommended shelf life. Third-party or mismatched inks can create viscosity, adhesion, color, and reliability issues, particularly on printers designed around a specific ink chemistry.
Then inspect the maintenance station. A dirty cap top may fail to seal the head during idle periods, allowing nozzles to dry out. A weak pump may not pull ink through the head effectively. Worn wipers can drag contamination across the nozzle plate. On systems that use dampers, filters, or ink lines, restricted flow or air intrusion can produce intermittent dropout that looks exactly like a failed head.
Environmental conditions matter as well. Low humidity can accelerate drying in some ink systems, while excessive dust can contaminate the nozzle surface. Long idle periods are hard on any printer. If production is seasonal or intermittent, establish a routine that includes nozzle checks, scheduled circulation or agitation where required, and approved maintenance prints.
A Practical Replacement Decision Process
Before ordering a replacement, document the failure. Print a nozzle check, a solid-fill test, and a representative production file that makes the defect visible. Record what cleaning procedures were performed and whether the missing nozzles changed. This gives your operator, service technician, or equipment supplier a clearer basis for troubleshooting.
Use this sequence:
1. Confirm the defect on a nozzle check and in an actual print.
2. Perform only the approved cleaning and recovery procedures for that printer model.
3. Inspect ink supply, caps, wipers, dampers, pumps, and electrical contacts.
4. Run alignment and calibration after nozzle performance is stable.
5. Replace the printhead if defects remain consistent or the machine reports a confirmed head fault.
This process is more efficient than treating every defect as a printhead failure. It also gives you a defensible maintenance record for warranty discussions, service planning, and production scheduling.
Consider the Cost of Downtime, Not Just the Part
A printhead replacement has a direct cost, but the larger expense is often the output lost while a machine produces sellable-looking but unacceptable work. A shop may spend days reprinting banners with banding, remaking wrap panels with color shifts, or troubleshooting a CAD plotter that leaves gaps in dense black lines. In those cases, delaying replacement can cost more than the component itself.
On the other hand, a printer near the end of its useful service life may need a broader evaluation. If multiple heads fail in a short period, maintenance components are worn, and the printer cannot meet current production speed or color requirements, investing in refurbished or newer professional equipment may produce a better return than continuing piecemeal repairs.
Protect the New Printhead From Early Failure
After replacement, follow the printer-specific installation, ink charging, alignment, and calibration procedure exactly. A new head should be paired with a clean maintenance system and stable ink supply. Skipping this work can compromise the replacement before it has a chance to perform.
Maintain a simple log of nozzle checks, cleaning cycles, head replacements, ink changes, and recurring errors. Over time, that record reveals whether a problem is caused by print volume, media handling, environmental conditions, or a supporting component that needs attention.
A printhead should earn its replacement cost by restoring dependable production, not by temporarily hiding an unresolved maintenance problem. When output quality starts affecting reprints, deadlines, or the professional finish your customers expect, act on documented test results and restore the printer to a standard your shop can confidently sell.
