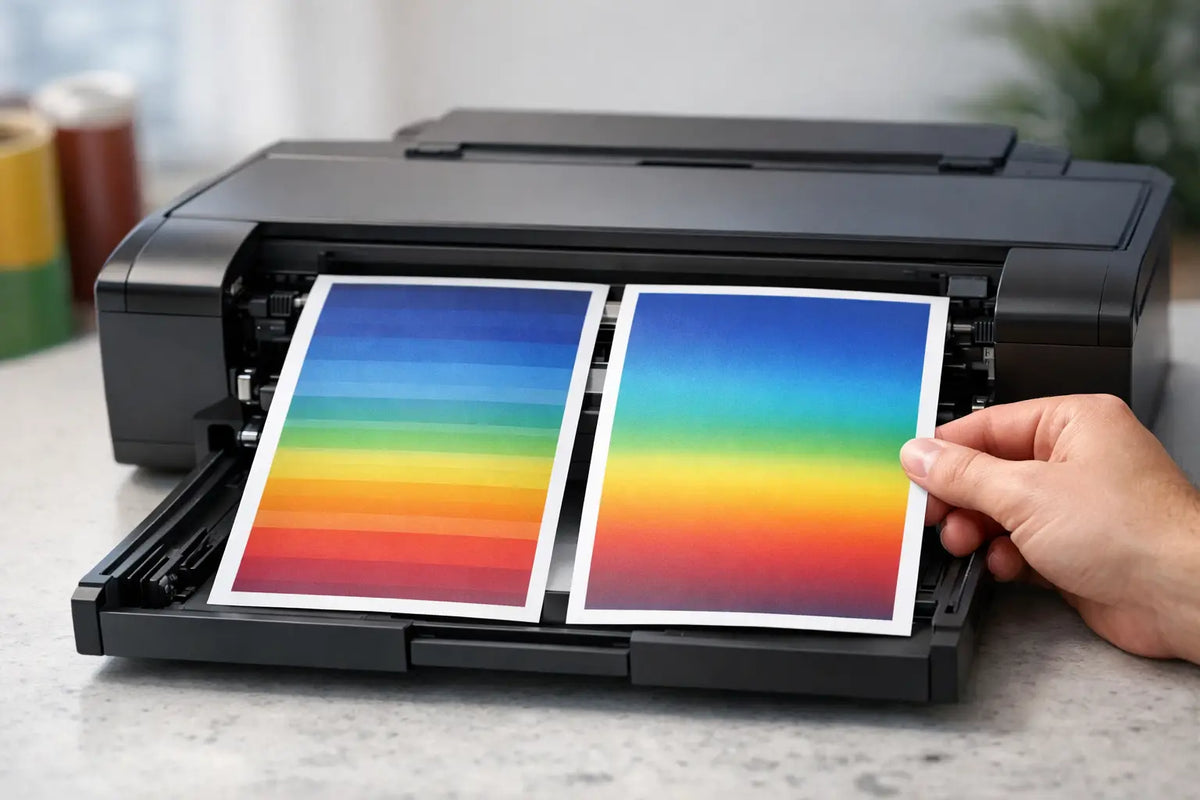

Banding usually shows up when a job is already late, the media is loaded, and the output should be sellable. You see horizontal lines across a solid color, striping in gradients, or uneven density in an image that looked fine on screen. If you are trying to figure out how to prevent banding prints, the fix is rarely one setting by itself. In most production environments, banding comes from a combination of printhead condition, media handling, pass count, curing or drying, and file setup.
That is why the best approach is not a quick guess. It is a repeatable workflow that removes variables one by one and keeps your printer producing consistent output across banners, wraps, posters, CAD sets, and photo prints.
What causes banding in wide-format printing
Banding is visible inconsistency between printed swaths. In practical terms, the printer is not laying down ink in a perfectly even way from one pass to the next. Sometimes that means missing nozzles. Sometimes it means the printhead is firing correctly, but the media is not advancing with enough precision. In other cases, the job is running too fast for the resolution, ink load, or drying conditions.
The reason banding can be frustrating is that different problems create a similar visual defect. A clogged nozzle can look like a feed calibration issue. Low-quality media can look like a carriage alignment issue. Excess ink on an uncoated film can mimic mechanical inconsistency. If you treat every banding issue like a clogged head, you waste time and ink.
How to prevent banding prints at the source
The most reliable way to prevent banding is to control the variables that affect dot placement and ink consistency before the defect appears. Shops that get stable output do not rely on last-minute troubleshooting. They build a stable print condition and protect it.
Start with nozzle health and routine maintenance
Nozzle performance is the first checkpoint because even a small number of deflected or missing nozzles can create visible striping in solid fills and skin tones. Run nozzle checks daily if the printer is in regular production, and more often if the machine has been idle, the humidity has shifted, or you are switching between demanding jobs.
If a nozzle check is not clean, do not force a full run and hope the issue disappears in the image. A light cleaning may solve it, but repeated aggressive cleanings can waste ink and shorten component life. If the problem keeps returning, look deeper at capping stations, wipers, dampers, ink delivery, and environmental conditions. Chronic banding often points to maintenance parts that are wearing out, not just dirty nozzles.
Use the correct media profile
A surprising amount of banding comes from running the wrong profile or using a generic profile that does not match the actual media. The printer may be advancing correctly for one vinyl and poorly for another. Ink limits that are safe on coated paper may create pooling or uneven drying on film.
Profiles matter because they control pass mode, ink restrictions, heater settings, carriage behavior, and feed compensation. When shops change media brands to save money without updating profiles, print quality is usually the first place the savings disappear. If you want cleaner gradients and more even solids, use a profile built for that exact media whenever possible.
Match pass count to the job, not just the deadline
Low-pass production modes help throughput, but they can expose banding on demanding graphics. A simple construction plan or short-term banner may be acceptable at a faster mode. A backlit display, photographic panel, or high-coverage wall graphic usually is not.
This is where experienced operators protect margin. They do not print every job at the highest quality setting, but they also do not run premium output in draft mode. If a file has large solid areas, subtle gradients, or close-viewing distance, increase the pass count and resolution enough to hide swath transitions. Yes, print time goes up. Reprints cost more.
Mechanical accuracy matters more than most shops think
When a printer bands consistently even after nozzle checks look good, the next likely cause is mechanical alignment or media movement.
Calibrate media feed and bidirectional alignment
Media feed calibration is critical because the printer must advance the substrate by exactly the right amount between passes. If the advance is too short or too long, you get visible horizontal lines. This becomes more obvious on heat-sensitive films, laminated stocks, and longer runs where small inaccuracies compound over distance.
Bidirectional alignment also deserves attention. If the carriage is firing in both directions and the droplets are not landing in the same position, the result can look like fuzzy edges, graininess, or banding. Calibration should not be treated as a one-time setup task. Different media types, temperatures, and production conditions can justify recalibration.
Watch tension, take-up, and media loading
Wide-format printing is only as stable as the way the media travels through the machine. Uneven tension, skewed loading, edge curl, and poor take-up can all introduce inconsistency. On longer runs, especially with vinyl, banner, and thinner films, a bad load can create banding that looks like a printhead issue.
Operators should load media squarely, confirm tension is appropriate, and monitor whether the take-up system is pulling too aggressively or too loosely. Media that lifts slightly off the platen or shifts under heat can change dot placement enough to show defects in high-value work.
Environment plays a bigger role than many operators admit
If print quality changes from one day to the next with no hardware changes, look at the room. Temperature and humidity affect ink behavior, media stability, and nozzle performance. Low humidity can increase static and nozzle drying. Excess humidity can change how media absorbs or holds ink. Heat near the printer can alter feed consistency and drying behavior.
This matters even more in mixed production spaces where doors open frequently, HVAC fluctuates, or equipment sits near loading areas. The goal is not a perfect laboratory. It is a controlled, repeatable production environment where your printer, ink, and media behave the same way every shift.
File design and color build can trigger visible banding
Not every banding complaint starts at the printer. Some begin in the file.
Be careful with large flat fills and weak gradients
Certain colors and transitions make banding easier to see, especially light grays, skin tones, blues, and smooth blends. A file with a massive flat area at low resolution may print with more visible structure than a better-prepared file built for output.
If the artwork includes long gradients or sensitive tonal transitions, make sure the raster resolution is appropriate and the RIP settings are not over-compressing detail. In some cases, adding a small amount of noise or adjusting the gradient build can reduce visible stepping and make print structure less noticeable. It depends on viewing distance and application.
Let the RIP do its job correctly
RIP software settings influence screening patterns, dot distribution, color handling, and output quality. If screening is too coarse for the application or if quality presets are mismatched to the media, banding can become more obvious. Shops that standardize RIP presets by application tend to get more predictable results than shops where every operator uses different settings for similar jobs.
How to troubleshoot banding prints without wasting production time
When banding appears, move in order. Start with a nozzle check. Confirm the correct media profile. Check pass mode and resolution. Review feed calibration and alignment. Inspect media loading and tension. Then look at environmental conditions and file construction.
That sequence matters because it separates ink delivery issues from motion issues and file issues. Too many shops jump straight into repeated cleanings, which may do nothing if the actual problem is feed error on a low-pass setting with an unstable banner stock.
A smart shop also keeps notes. If the same material repeatedly needs extra feed adjustment, document it. If one profile bands at speed but not at a higher pass count, record that. Process control is what turns troubleshooting into prevention.
When banding points to worn parts or an aging platform
There is a point where recurring banding is not an operator error. It is a hardware reliability issue. Older printheads, failing maintenance stations, worn feed mechanisms, encoder contamination, and inconsistent ink delivery can all create defects that return no matter how carefully you profile the media.
That does not always mean replacing the entire printer. Sometimes a targeted service event or replacement of maintenance components restores output quality. In other cases, especially when a machine is being pushed beyond its ideal production load, the better business decision is to upgrade into a platform with tighter media control, better print modes, and more predictable uptime. For shops balancing output quality against production deadlines, that calculation is usually about margin, not just equipment age.
Wide Image Solutions works with businesses that need that kind of practical decision-making, whether the right answer is parts, media, support, or a different production setup.
The standard that actually prevents reprints
If you want to know how to prevent banding prints consistently, the answer is simple but not glamorous. Keep nozzle health stable. Run the right profile. Calibrate feed and alignment. Use media that matches the application. Control the room. Match print mode to the actual quality requirement. Then standardize those decisions so every operator gets the same result.
Banding is expensive because it steals time, media, ink, and confidence in the output. The shops that avoid it are not lucky. They run a tighter process, and that process shows up in every printable foot that leaves the machine.
