A roll that enters the plotter slightly off-center can turn a simple decal run into wasted vinyl, missed deadlines, and an operator standing over the machine instead of finishing work. Knowing how to load plotter media correctly protects cut accuracy, material yield, and the uptime your sign, graphics, or print operation depends on.
The exact loading sequence varies by manufacturer and model, but the principles remain consistent across professional vinyl cutters, flatbed plotters, print-and-cut systems, and CAD plotters. Start with clean media, correct pinch-roller placement, proper alignment, and enough room for the material to move without resistance.
Start With the Right Media Setup
Before loading anything, confirm that the media is compatible with the plotter and the job. A 30-inch cutter can physically accept a 30-inch roll, but that does not mean every 30-inch material is suitable. Thick sandblast stencil, reflective films, laminated prints, and magnet materials require different pressure, speed, and tracking considerations than standard calendared vinyl.
Inspect the roll edges before placing it in the machine. Crushed cores, telescoped rolls, curled corners, and unevenly wound media can all create feeding problems. If the material was stored in a cold warehouse or delivery vehicle, let it acclimate to the production area before use. Cold vinyl can remain curled and stiff, while humid conditions may affect paper-backed media and liners.
Also confirm whether the plotter is designed for roll-fed or sheet-fed media. Roll-fed cutters use a roll holder, media flanges, or a basket system to control the supply roll. Sheet-fed plotters require the leading edge to be square and free of damage. Do not force a roll-fed loading method onto a machine built for individual sheets.
For print-and-cut work, allow enough unprinted margin for pinch rollers and registration marks. Pinch rollers placed over printed ink, laminate seams, or registration marks can affect traction and compromise contour-cut accuracy.
How to Load Plotter Media Step by Step
Begin with the plotter powered on and positioned on a stable, level surface. Make sure there is adequate clearance behind and in front of the machine. Long graphics need room to feed forward and backward during cutting, especially on models that run a tracking test before production.
Raise the pinch rollers or release the media lever. On most vinyl cutters, this opens the drive path so the material can be positioned beneath the rollers. If your machine uses movable pinch rollers, slide them only by their designated handles or tabs. Pulling directly on the roller assembly can damage the guide rail or affect roller alignment.

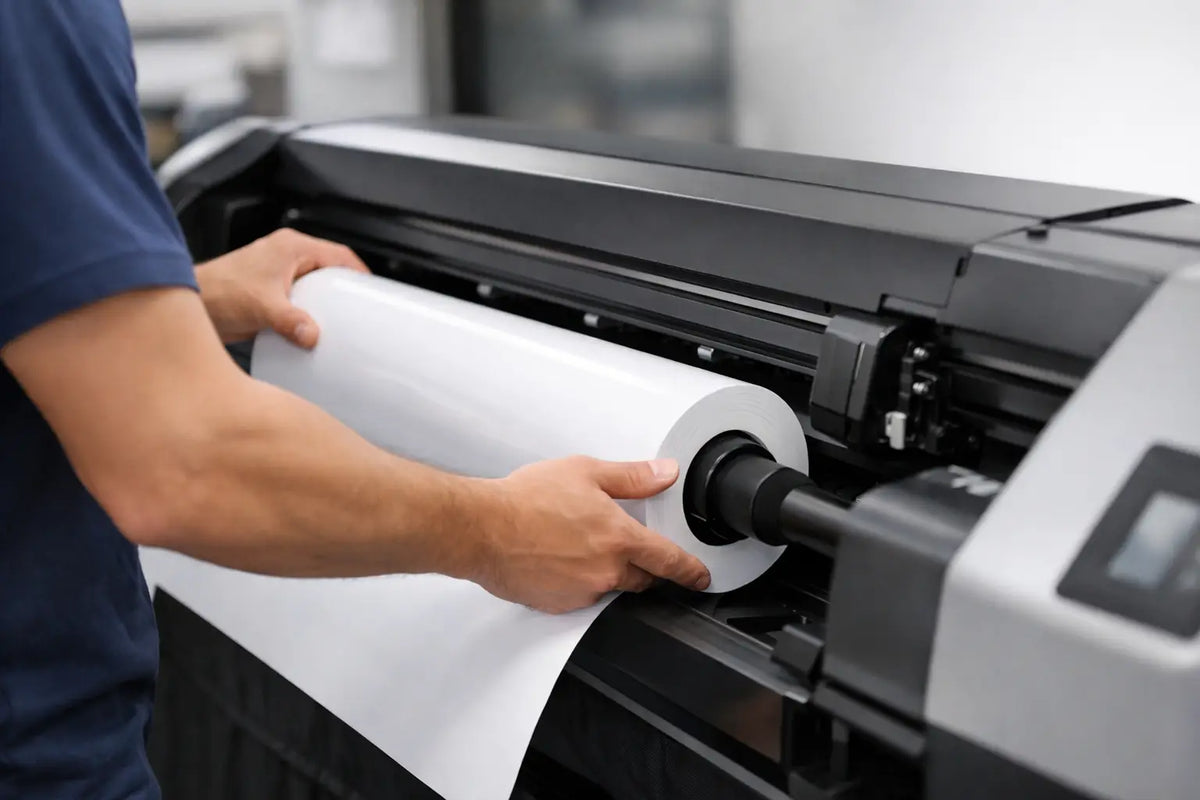

Place the roll on the roll holder with the media unwinding in the correct direction. On many rear-fed cutters, the vinyl should feed from the bottom of the roll toward the front of the machine. Your plotter’s loading diagram takes priority here, because feed direction differs among brands and configurations.
Pull enough media from the roll to reach the front of the plotter with several extra inches available. Do not load a roll under tension. The material should lie flat in the feed path and unwind freely from the rear. If the roll holder includes adjustable flanges, set them close to the core without squeezing it. The roll needs support, but it must still rotate smoothly.
Align the media using the plotter’s guide marks or ruler. These marks provide a useful starting point, but the edge of the media is the real reference. Position the material as straight as possible from front to back. A small amount of skew may not matter on a short sticker run, but it becomes a major problem over 10, 20, or 50 feet of vinyl.
Lower the pinch rollers onto the material. Each roller must sit over a designated grit-roller section or approved drive area. Avoid placing a pinch roller over a gap, an unsupported section, or too close to the outer edge of the media. For narrow material, use the minimum number of rollers specified by the manufacturer. For wide rolls and long runs, use all recommended rollers to improve tracking.
Once the lever is lowered, select the appropriate media type on the plotter control panel. Depending on the machine, this may be roll, sheet, edge, piece, or similar terminology. The plotter will typically measure the usable width and establish its origin point. Watch this process. If the machine reports an unexpected width, unload the media and correct the alignment before sending a job.
Perform a manual feed check before cutting production work. Use the feed function to advance several feet of material, then reverse it if your model permits. Look at the edge relative to the guide marks. If it walks noticeably left or right, reload it. It is faster to correct tracking now than to lose a full printed panel later.
Pinch Roller Placement Determines Tracking
Pinch rollers do more than hold material in place. They apply pressure against the grit rollers, creating the traction that moves vinyl accurately through the plotter. Poor roller placement is one of the most common reasons a cutter drifts, bunches media, or loses position during a long run.
Keep the outer pinch rollers inside the media edges, typically by at least a small margin recommended by the manufacturer. If a roller hangs off the media, it cannot create consistent pressure. If it is too far from the edge, the material may lift or wander during transport.
On a wider roll, distribute the rollers across the usable width rather than clustering them in the center. This helps maintain even tension and reduces the risk of skew. The right setup depends on media width, thickness, and job length. A short run of standard adhesive vinyl is forgiving. A long run of laminated vehicle-wrap graphics requires much tighter control.
Clean rollers also matter. Adhesive residue, paper dust, and ink overspray can reduce grip or leave marks on the liner. Use the cleaner and maintenance method approved for your plotter. Aggressive solvents or abrasive materials can damage rubber surfaces and shorten roller life.
Set the Origin and Run a Test Cut
After loading, set the origin where you want the job to begin. For roll material, leave enough lead edge so the first cut does not start in a curled, damaged, or uneven section. If you are contour cutting printed graphics, confirm that the registration marks are visible and located within the plotter’s readable area.
Run a test cut using the actual material and blade configuration for the job. This is especially important when changing from vinyl to heat-transfer film, reflective sheeting, mask, paper, or laminated media. A test cut should cleanly cut the face film while leaving the liner intact. If the blade cuts through the backing, reduce force or blade exposure. If the film does not weed cleanly, increase force gradually or inspect the blade for wear.
Do not use blade force to compensate for a loading problem. Excessive force can make tracking issues worse by increasing drag on the media. Correct alignment and roller pressure first, then fine-tune cutting settings.
Prevent Media Drift During Long Production Runs
Long unattended runs require more preparation than short decal jobs. The material must unwind freely, the roll must be supported, and the output must have a clear path. A heavy roll dragging on a floor, catching on a box, or rubbing against the stand can pull the media off course.
For long graphics, pull additional media off the roll before starting if your workflow and machine design allow it. This reduces back-tension from the supply roll. Use a take-up system when printing long runs on compatible equipment, and keep printed material from contacting dirty surfaces before lamination or contour cutting.
Monitor the first few feet of every long job. Once you confirm the media is tracking straight, the rollers are gripping evenly, and the roll is unwinding without resistance, the plotter is far more likely to finish accurately. This quick check is particularly valuable when running premium cast vinyl, laminated wrap panels, or high-value reflective materials.
Common Loading Problems and Practical Fixes
If the plotter shows a media error immediately after loading, verify that every pinch roller is positioned over an approved grit-roller zone and that the lever is fully lowered. If the reported width is incorrect, the media may be skewed, the edge sensor may be blocked, or the material may not be seated correctly.
If the material shifts during cutting, unload it and inspect the roll path. Check for a tight core, uneven flanges, dirt on the grit rollers, and pinch rollers that are too close to an edge. Re-load the media with less tension and complete a longer feed test.
If cuts are accurate at the beginning but move out of position farther into the job, suspect tracking before blaming software. A clean design file cannot correct a roll that is walking sideways. Long jobs may also reveal worn pinch rollers, inconsistent pressure, or a cutter stand that is not level.
If contour cuts do not line up with printed graphics, first confirm the print is fully cured and flat. Then verify registration-mark placement, media loading, sensor cleanliness, and the correct contour-cut workflow. Laminated media can be more difficult for some optical sensors to read, depending on the laminate finish and the plotter model.
A correctly loaded roll is one of the simplest ways to protect expensive media and keep production moving. Make loading checks part of the job setup, not an afterthought. For operators running signs, decals, vehicle graphics, CAD output, or specialty films every day, consistent media handling delivers cleaner cuts, less waste, and a workflow that stays ready for the next deadline.
