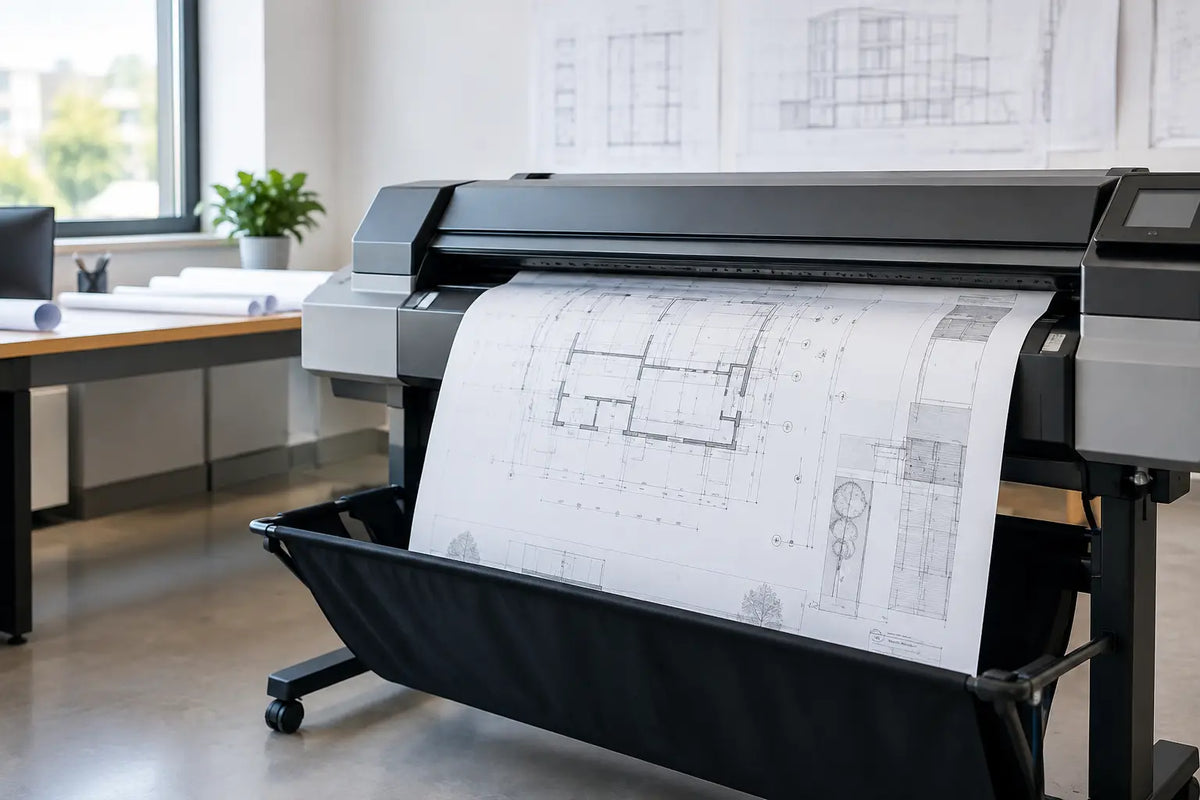

A missed detail on a 36-inch construction sheet can create more than a reprint. It can slow a permit package, send a crew to the wrong location, or leave a client reviewing an outdated revision. CAD plotters are built to prevent that kind of friction by producing precise, legible technical documents at the size, speed, and consistency professional teams require.
For architects, engineers, contractors, surveyors, and print providers, a plotter is not simply a large printer. It is a production asset that needs to fit the volume of drawings, media requirements, workspace, software environment, and service expectations of the operation. The right machine keeps drawing sets moving. The wrong one turns routine output into a daily bottleneck.
What CAD Plotters Need to Do Well
Technical printing has different priorities than photographic or signage work. A CAD workflow depends on crisp lines, dense text, dependable scale accuracy, and clean monochrome output, often with color highlights for layers, markups, utilities, or presentation plans. A plotter must maintain that quality from the first sheet to the last sheet in a deadline-driven set.
Speed matters, but published pages-per-minute figures are only part of the equation. Look at the complete process: file processing, first-page-out time, roll loading, automatic paper switching, cut accuracy, stacking, and how quickly an operator can retrieve a finished drawing without damaging it. A fast device that requires constant intervention may not outperform a slightly slower model with better automation.
Media handling is equally important. Standard bond paper remains the daily choice for many construction documents, but design teams may also need coated paper, vellum, polypropylene, presentation media, or heavier stocks. A machine that supports the media you actually use, rather than only the media listed on a specification sheet, protects both output quality and operating efficiency.
Choosing CAD Plotters by Application
The best configuration depends on who is printing and what happens to the drawings after they leave the machine. A small architectural office producing occasional plan sets has different needs than a reprographics department serving multiple project teams.
Architecture and engineering offices
For most AEC offices, a 24-inch or 36-inch plotter is the practical starting point. A 24-inch unit suits firms that primarily print D-size sheets and have limited floor space. A 36-inch model gives more flexibility for full-size E drawings, larger presentation graphics, and standard plan-set output without trimming material.
Prioritize precise line rendering, accurate color for visual plans, straightforward network access, and low first-page-out time. If several staff members submit files throughout the day, onboard processing and user-friendly job management are worth paying for. The goal is to let designers print directly from established CAD or PDF workflows without involving an IT specialist for ordinary jobs.
Construction, utilities, and field operations
Construction teams often print high volumes of updated drawings under short deadlines. Durability, roll capacity, and unattended production are usually more valuable than gallery-quality color. A dual-roll configuration can make a major difference by keeping common media sizes loaded and reducing changeovers between plan sheets and detail drawings.
Consider the environment as well. A plotter placed near a project office, trailer, or document control area should be easy to operate, economical on ink, and backed by accessible technical support. A machine with efficient sleep modes and predictable ink usage helps control cost when printing patterns shift from occasional revisions to heavy bid or closeout activity.
Centralized print rooms and reprographics providers
Higher-volume environments need more than width and speed. They need throughput. That means larger ink capacities, multiple rolls, automated media loading, a reliable output stacker, strong network performance, and a service plan that reduces downtime. If operators are repeatedly sorting sheets from the floor or manually feeding rolls, labor costs can quickly outweigh a lower purchase price.
Print service providers should also consider whether their CAD device will produce presentation posters, maps, GIS graphics, and short-run color boards. A versatile wide-format printer can create more revenue opportunities, but it should not compromise the dependable black-line production that keeps core customers returning.
The Specifications That Affect Daily Output
Resolution alone does not define technical print quality. CAD files contain fine vectors, small fonts, hatches, and dense line work. What matters is how cleanly the printer reproduces those elements, how consistent the output remains across the page, and whether drawings stay readable after handling in the field.
Look closely at ink technology and cartridge size. Pigment inks are often preferred when documents need stronger durability and moisture resistance, while dye-based systems can offer attractive color output for certain presentation applications. The better choice depends on the media, expected document life, and your color requirements. For high-volume black-line printing, the cost per square foot and cartridge replacement frequency deserve as much attention as the machine's purchase price.
Memory and processing power also matter when users send complex PDFs, large renderings, or multiple files at once. Underpowered processing can create delays, errors, or long queues during the exact periods when a project team needs output immediately. Verify compatibility with the software and file types your team uses most, including PDF, HP-GL/2, PostScript where required, and common CAD export formats.
Finally, measure the real installation footprint. The listed printer width does not account for room to load rolls, open covers, access ink, collect output, or perform service. A 36-inch plotter needs a workspace that supports the operator as well as the hardware. Planning this before delivery prevents an expensive piece of equipment from becoming difficult to use.
Single Roll vs. Dual Roll Configurations
A single-roll CAD plotter is a sensible fit when one paper type dominates the workload. It keeps the initial investment lower, takes up less space, and is easy for a small team to manage. For an office printing mostly 24-pound bond in one width, a single-roll unit may be all that is needed.
Dual-roll systems earn their place when media changes are frequent or volume is high. One roll can hold 24-inch bond while the other carries 36-inch bond, allowing the device to select the appropriate roll automatically. Another common setup pairs everyday bond paper with coated presentation media. This reduces operator touchpoints and helps avoid sending an expensive presentation print to the wrong roll.
The trade-off is higher equipment cost and a larger footprint. It pays off when the saved time, reduced waste, and faster turnaround are measurable in your workflow. If a single operator spends several minutes changing media dozens of times each week, the case for automation becomes clear.
Cost of Ownership Is More Than the Machine Price
A low upfront price can be attractive, especially for a growing business. But technical printing equipment should be evaluated over its working life. Ink, printheads, maintenance parts, media, power consumption, repairs, and operator time all affect the actual cost of each sheet.
Refurbished professional equipment can be a strong value for firms that need commercial-grade capability without absorbing the cost of a new unit. The critical question is not whether the machine is refurbished. It is whether it has been inspected, tested, supported with available parts, and sold with a meaningful warranty. For production equipment, condition and support matter more than a label.
Availability also has financial value. A plotter that sits idle while a team waits for a part or struggles to diagnose an error creates costs that may not appear on an invoice. Before buying, ask about replacement inks, printheads, maintenance supplies, service documentation, remote troubleshooting, and trade-in options for future upgrades.
Build a Workflow Around Uptime
Even the right plotter needs a disciplined operating routine. Keep approved media on hand, monitor ink levels before high-volume runs, and schedule routine maintenance before it becomes an emergency. Operators should know how to load rolls correctly, run printhead checks, respond to basic error codes, and identify when an issue requires service.
File preparation deserves the same attention. Standardized PDF presets, clear naming conventions, correct page sizes, and revision controls reduce waste before a drawing reaches the printer. When several departments share a device, simple job-management rules prevent old files, duplicate sets, and incorrect media selections from consuming time and material.
For businesses that depend on wide-format output, it is also wise to keep a contingency plan. That may mean maintaining a second device for essential documents, establishing a relationship with a local print provider, or selecting equipment from a supplier that can provide parts and technical guidance quickly. Wide Image Solutions supports this approach by pairing equipment choices with supplies, support resources, and workflow-specific options rather than treating the printer as a standalone purchase.
When It Is Time to Upgrade
Slow output is an obvious warning sign, but it is not the only one. Frequent media changes, expensive ink consumption, recurring service calls, limited file compatibility, and manual sorting can all indicate that an older device no longer fits the workload. An upgrade is justified when it removes a recurring production constraint, not just because a newer model has more features.
Start with your last 30 days of printing. Review common paper widths, average sheet volume, peak-demand periods, color usage, file types, and the time employees spend waiting for or managing output. Those details will point to the right combination of width, roll capacity, ink system, and automation. A CAD plotter should make drawing production feel routine, even when the project schedule is not.
