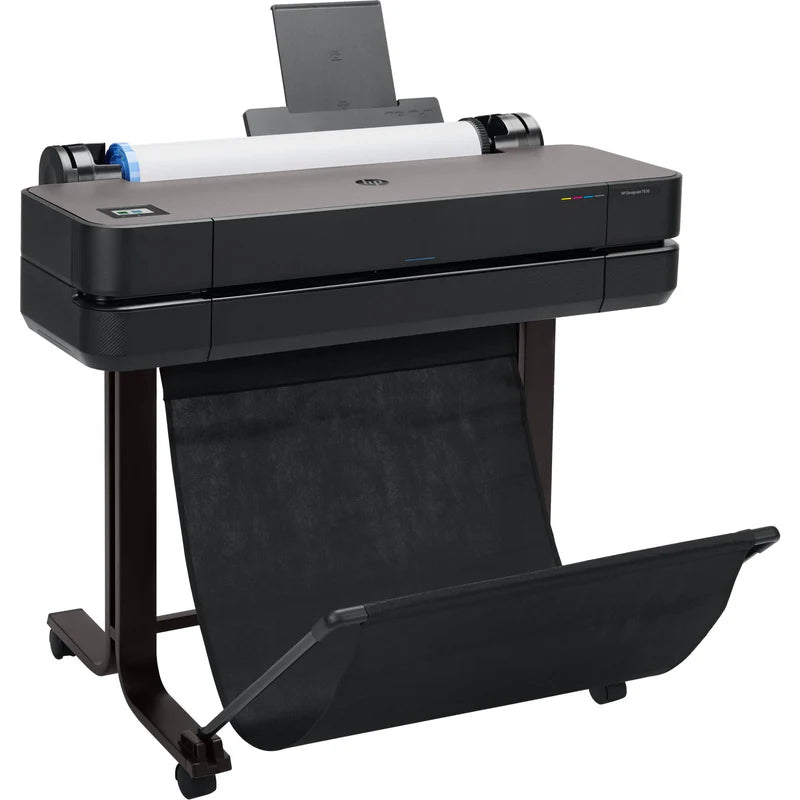

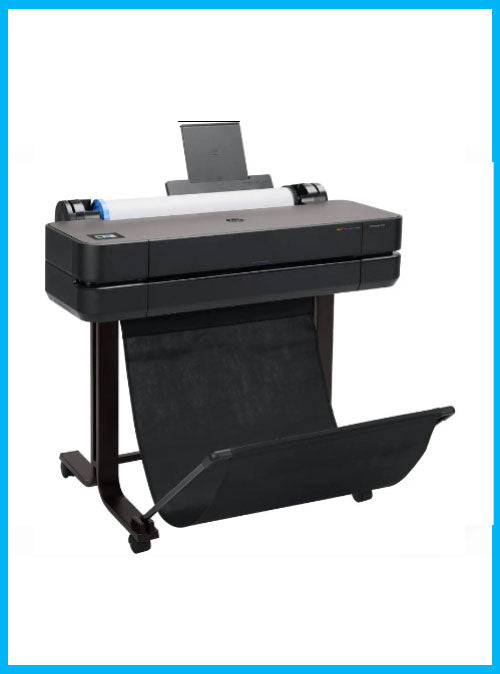

HP DesignJet T630 24" Large-Format Wireless Plotter Printer with Mobile Printing (5HB09A)

$1,299.00
$1,299.00
Shipping calculated at checkout.
    HP DesignJet T630 24" Large-Format Wireless Plotter Printer with Mobile Printing (5HB09A)
    HP DesignJet T630 24" Large-Format Wireless Plotter Printer with Mobile Printing (5HB09A)

    Tech Specs


    Product specifications

    Print speed, maximum

    30 sec/page on D, 76 D prints per hour

    [1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks. Actual performance may vary based on a variety of conditions, including but not limited to network configuration.

    Resolution (color)

    Up to 2400 x 1200 optimized dpi

    Print Technology

    HP Thermal Inkjet

    Number of print cartridges

    4 (C, M, Y, K)

    Product disclaimer

    Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.

    Compatible ink types

    Dye-based (C, M, Y); pigment-based (K)

    Print languages

    HP-GL/2, HP-RTL, CALS G4, JPEG, URF

    Connectivity, standard

    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11

    Memory, standard

    1 GB

    Hard disk

    None

    Non-printable area (cut-sheet)

    0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)

    Line accuracy

    ±0.1%
    ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.

    Maximum optical density (black)

    8 L* min/2.10 D
    With HP Premium Instant Dry Photo Gloss media with Original HP inks.

    Finished output handling

    Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

    Media sizes supported

    Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1

    Media sizes, custom

    Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 24 x 74.7 in

    Media types

    Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

    Media sizes, standard

    24-in: 11 to 24 in (279 to 610 mm); 36-in: 11 to 36 in (279 to 914 mm)

    Roll external diameter

    3.9 in (100 mm)

    Media thickness

    Up to 11.8 mil

    Power

    Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

    Power consumption

    <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

    Operating temperature range

    41 to 104ºF (5 to 40ºC)

    Dimensions (W X D X H)

    24-in: 39.9 x 23.8 x 36.7 in (1013 x 605 x 932 mm); 36-in: 51.9 x 23.8 x 36.7 in (1317 x 605 x 932 mm)

    Weight

    24-in: 63.7 lb (28.9 kg); 36-in: 76.5 lb (34.7 kg

    Package weight

    24-in: 82.5 lb (37.4 kg); 36-in: 121.9 lb (55.3 kg)
